[EN] Canva

Canva and prepress

Canva is only suitable for preparing print files with significant limitations, particularly when it comes to professional prepress workflows. For simple applications—such as printing a flyer or poster at a copy shop with low quality requirements—the tool may be sufficient. However, it quickly reaches its limits in more demanding print productions.

Note: Canva is under very active development. The information provided here reflects the status as of April 2026.

Bleed

When it comes to bleed, Canva offers a functional but rather basic solution. Bleed and crop marks can be enabled during PDF export, but bleed is not integrated as a fixed part of the document structure, as is standard in professional layout software.

Colors & Color Management

Canva shows its greatest limitations in the area of color management. Controlled use of ICC profiles is practically not possible, and although CMYK export is available, there is no control over the actual color conversion. For color-critical productions—such as corporate design materials or offset printing—this represents a significant risk, as reliable color accuracy cannot be guaranteed.

While Canva allows exporting designs as a “print PDF” with CMYK output (in the Pro version), this should not be mistaken for a true, controlled CMYK workflow.

The conversion from RGB to CMYK happens automatically in the background, without any possibility to influence how exactly the conversion is performed. Key functions are missing, such as the ability to select or assign a specific ICC profile (e.g. ISO Coated v2) and a preview of how colors will actually appear in print.

This has practical consequences: colors may appear significantly different in print compared to on screen, especially for strong brand colors, subtle gradients, or highly saturated tones. Since Canva does not provide soft proofing or precise control over color separation, color accuracy is not guaranteed. While this may be acceptable for simple print products, it becomes a real risk for color-critical projects such as corporate design applications or high-quality advertisements.

In summary, Canva technically delivers CMYK data, but without the necessary control over color profiles and conversion. For professional print productions where color accuracy is essential, this is generally not sufficient.

PDF/X

In professional prepress workflows, standardized formats such as PDF/X-1a or PDF/X-4 are often required. Canva, however, typically generates a general print PDF without guaranteed compliance with these standards. Important parameters such as transparency flattening or output intent cannot be controlled precisely.

Our Recommendation

Whenever possible, please use a professional tool such as Adobe InDesign instead of Canva. If this is not an option, we provide a workaround below. However, this workaround is not an ideal solution, but merely a makeshift.



Workaround

To use this workaround, you will need

• Canva Pro and
• Acrobat Pro

Setting up the page in Canva

Canva only supports a fixed internal bleed of 0.125 inches (3.175 mm). In addition, no bleed box is defined in the exported PDF. Therefore, do not use Canva’s internal bleed. Instead, create your document at the final trim size including bleed.

For example, if the final trimmed size of the ad is 210 × 297 mm and a bleed of 4 mm is required on all sides, add 4 mm to each edge:

210 mm + 4 mm (right) + 4 mm (left) = 218 mm
297 mm + 4 mm (top) + 4 mm (bottom) = 305 mm

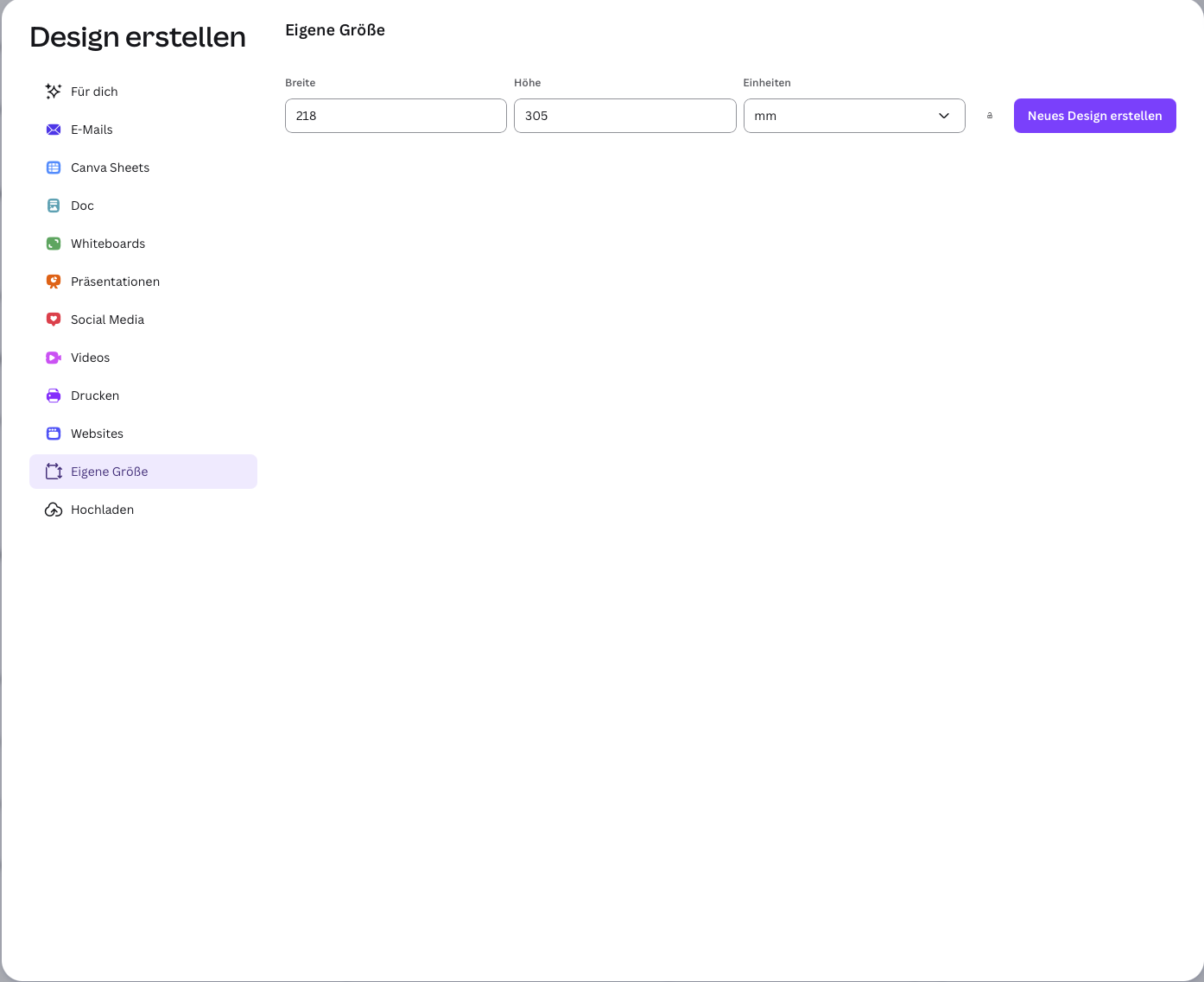

Go to File > Create new design > Custom size, switch the unit to millimeters, and enter the calculated values.

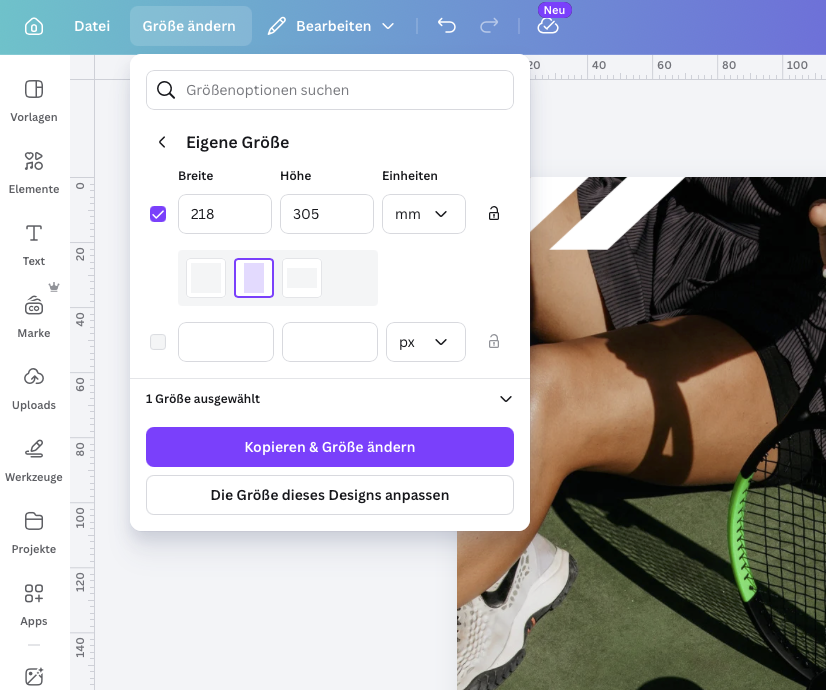

If you already have an existing layout, go to Resize > Custom size, enter the values, and choose either Copy & resize to create a correctly sized duplicate or Resize this design to adjust the current layout automatically.



Due to insufficient conversion in Canva from the imperial (US) system to the metric system, minor inaccuracies in dimensions may occur. These deviations are typically in the range of ±0.1 mm. However, within standard production tolerances of ±0.25 mm, this will generally not cause any issues.

PDF erstellen

Creating the PDF

Next, create a basic PDF file that will serve as the source for further processing in Acrobat Pro.

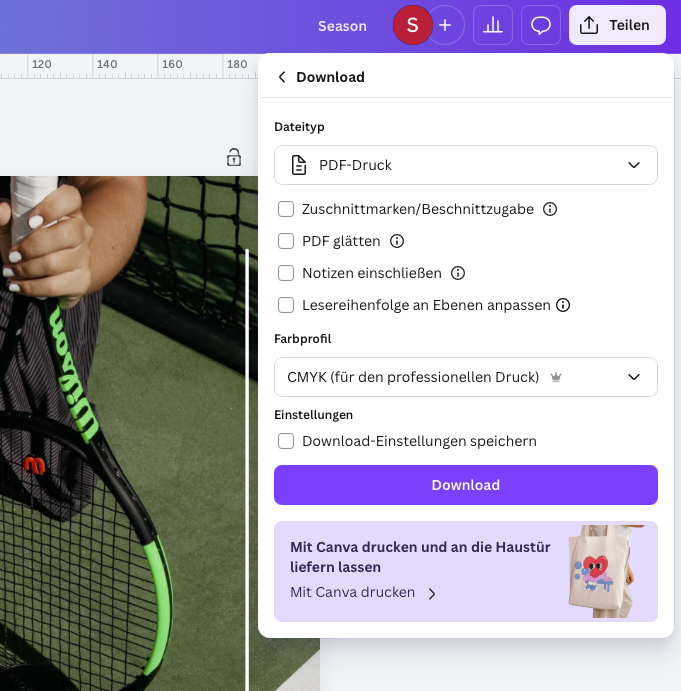

In the top right corner, select Share > Download, choose PDF Print as the file type, and set the color profile to CMYK (for professional printing). Leave all other checkboxes unchecked.

Then click Download to save the PDF.

The resulting PDF is not suitable for professional printing. The embedded color profile does not match common European print processes, no proper bleed is defined, and several optimizations are required to make the file PDF/X-compliant.

Canva embeds the color profile GRACol 2013 CRPC6 (ISO 15339-2), which is based on the characterization data CGATS21-2-CRPC6 (CGATS 21.2). This standard is primarily used in North America. CRPC6 is part of the GRACoL/G7 methodology, which is widely used in the United States, especially for offset printing on coated paper.



Preparing the PDF for print

1. Open Acrobat Pro and load the downloaded file via File > Open (usually from your Downloads folder).

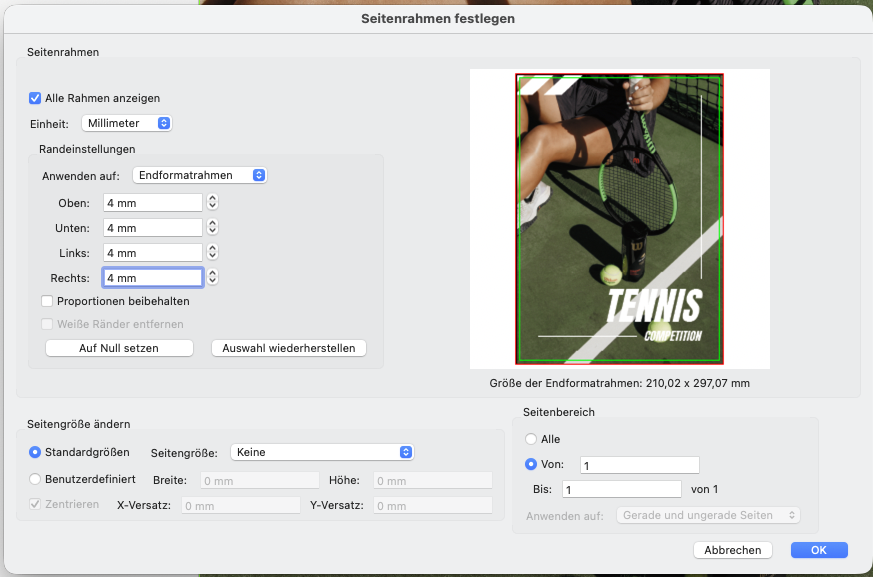

2. Go to Tools > Print Production and select Set Page Boxes.

3. Under margin settings, apply the values to the trim box and enter the bleed values you previously added. Confirm with OK.

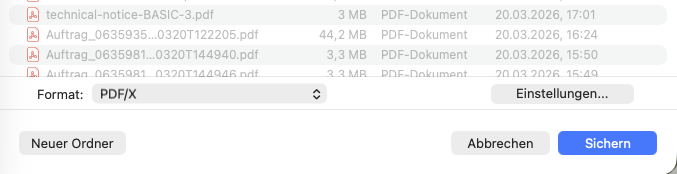

4. Return to Print Production and select Save as PDF/X. In the dialog, the format should automatically be set to PDF/X. Click Settings.

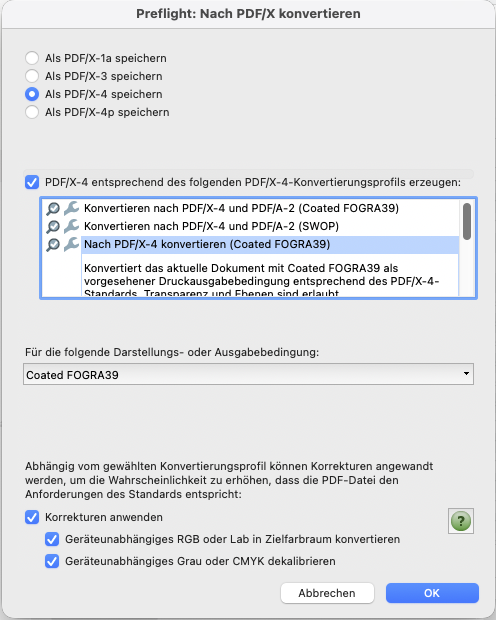

5. Choose Save as PDF/X-4 and enable the option to create a corresponding conversion profile. From the list, select Convert to PDF/X-4 (Coated FOGRA39). Enable the following options:

• Apply corrections
• Convert device-independent RGB or Lab to destination color space
• Convert device-independent Gray or CMYK

Click OK and review the result in Acrobat to ensure it meets your expectations.

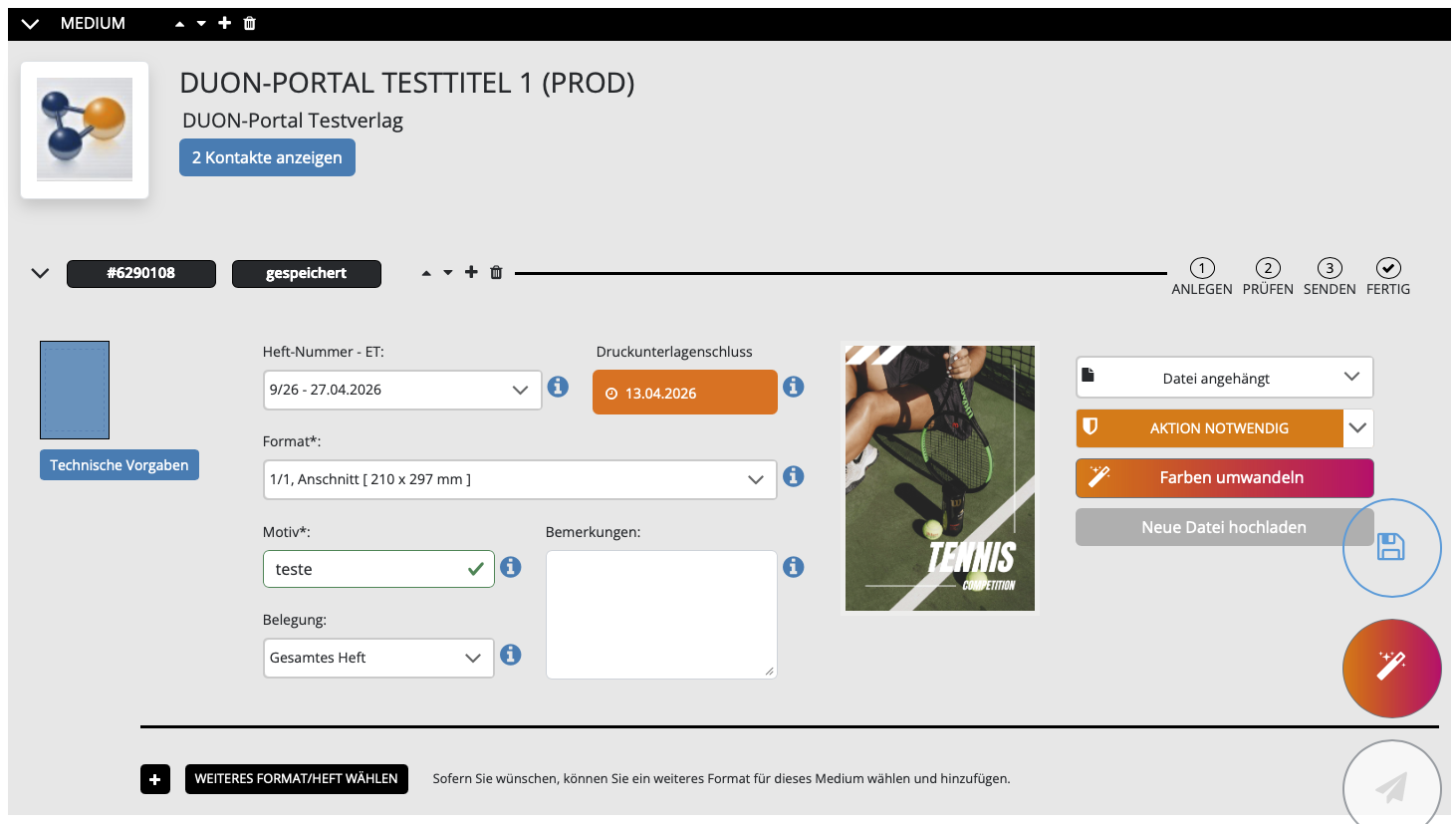

6. Upload the newly saved file to the DUON portal. The system will check the file and recognize that it is convertible. Use the Convert Colors function to automatically convert the file from Coated FOGRA39 to the required target profile. A final check will then be performed, which should typically result in no more than a warning.

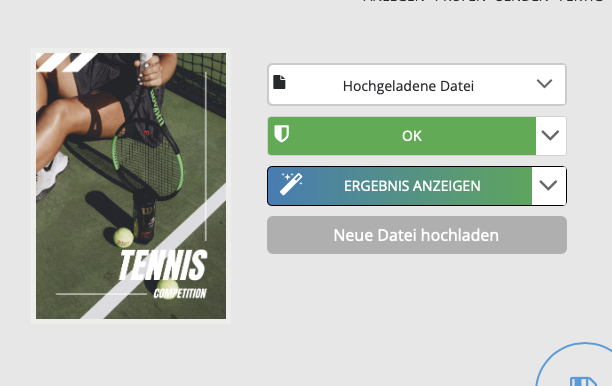

7. Under Show result, you can access the converted file. Be sure to review it carefully by opening it in Acrobat.

8. Send the file and, after your review, approve any warnings if necessary.
