Find the required ICC profile
1. Open the page www.duon-portal.de.
2. Go to MEDIA and type in the name of the medium you would like to deliver content to.
3. Click on the medium's name to go to the media page.
4. Select the issue based on the issue number/publication date.
5. From the list below, choose the size. Please pay particular attention to the differentiation and differences between the cover, interior, and, if applicable, partial placement.

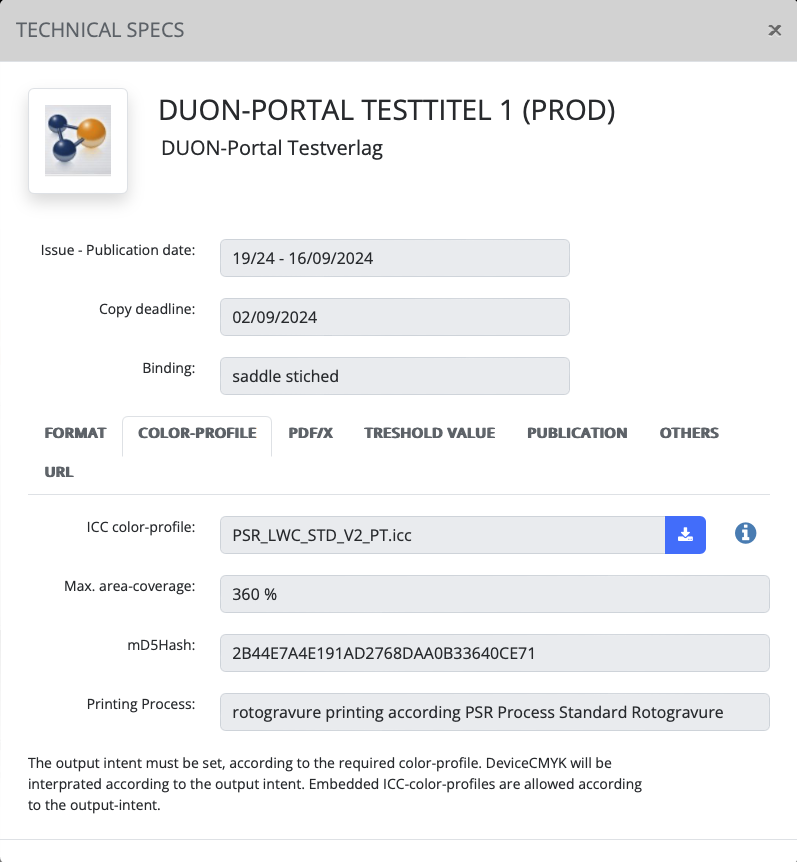

6. Click on Technical Specifications and select the Profile tab. Here you will find the option to view the profile name and download the profile package to which the profile belongs.
7. The *.icc file(s) will be provided in a *.zip file. You will typically find the data in the "DOWNLOAD" folder of your user directory. Be sure to unzip the data before installation.
Download the ICC profile
We generally recommend downloading color profiles directly from the manufacturer/provider.
Many color profiles come from the ECI (European Color Initiative) (www.eci.org). Since the website currently uses http instead of https, depending on your company's security settings, browser, and browser settings, you may not be able to access the page or complete the download.
Some profiles from WAN IFRA (World Association of Newspapers) are no longer available on the organization's website. Please use the alternative download link on the DUON portal.
| ID | Name | MD5-Hash | Download from Provider | Download DUON-Portal |
| 170 | PSRgravureLWC | 4A9CE2E89C7131610F637D061E24CED4 | Download from Provider | Download DUON-Portal |
| 171 | PSRgravureSC.icc | 0DA1041B2A6EE99F3A82D4854C2DE856 | Download from Provider | Download DUON-Portal |
| 172 | PSRgravureHWC.icc | F81603DDD028C2DF0C533861602BA72F | Download from Provider | Download DUON-Portal |
| 173 | ISOnewspaper26v4.icc | BCA21A6AFA3A4B5CEF9CA8E91565C1B7 | Download from Provider | Download DUON-Portal |
| 174 | ISO Coated v2 300% (ECI) | 35DB7968BF0904E9317CA9780D871BC3 | Download from Provider | Download DUON-Portal |
| 175 | ISOuncoated.icc | F55CF68E802AA3D58FA0AC356701F646 | Download from Provider | Download DUON-Portal |
| 176 | PSRgravureMF.icc | 728F70371F82E930637E60C760876A3D | Download from Provider | Download DUON-Portal |
| 177 | ISOcoated_v2_eci.icc | E798CC1D9F659A6155AC35AD9AC383BB | Download from Provider | Download DUON-Portal |
| 178 | ISOwebcoated.icc | 419531508D7D7158144964FA3E463387 | Download from Provider | Download DUON-Portal |
| 179 | PSR_LWC_PLUS_V2_PT.icc | 191C593B35A2E78AE3C25FE9508F533C | Download from Provider | Download DUON-Portal |
| 180 | PSR_SC_STD_V2_PT.icc | 1DB5D419DCB40A657CC0BA91CA8A5A6A | Download from Provider | Download DUON-Portal |
| 181 | PSR_LWC_STD_V2_PT.icc | 2B44E7A4E191AD2768DAA0B33640CE71 | Download from Provider | Download DUON-Portal |
| 182 | ISOuncoatedyellowish.icc | 4328644330F86626B573EC9807B4706D | Download from Provider | Download DUON-Portal |
| 183 | PSO_Coated_300_NPscreen_ISO12647_eci.icc | 416CDEED9A79D7BBF6E72DF8FB849C03 | Download from Provider | Download DUON-Portal |
| 184 | PSO_INP_Paper_eci.icc | 3270C78940103CAF87009C055F99A37F | Download from Provider | Download DUON-Portal |
| 185 | PSO_LWC_Improved_eci.icc | 39AF39921EE5BD26BDF97E0154014D75 | Download from Provider | Download DUON-Portal |
| 186 | PSO_LWC_Standard_eci.icc | D38C63CEAC57B372F0C2C393A746A678 | Download from Provider | Download DUON-Portal |
| 187 | PSO_MFC_Paper_eci.icc | D7A4F55B86A346C2CBF8CC2EE6B460D9 | Download from Provider | Download DUON-Portal |
| 188 | PSO_SNP_Paper_eci.icc | 035006CE074F99EF4A3BDC9F7BD78677 | Download from Provider | Download DUON-Portal |
| 189 | PSO_Uncoated_ISO12647_eci.icc | FA354010A03BB6E606D2FE88447A5669 | Download from Provider | Download DUON-Portal |
| 190 | PSOcoated_v3.icc | 52C9428D0760FB3A83914504F0956794 | Download from Provider | Download DUON-Portal |
| 191 | PSR_SC_PLUS_V2_PT.icc | D675814928C00CC8E703932F16494252 | Download from Provider | Download DUON-Portal |
| 192 | SC_paper_eci.icc | FCFC111014DA77BF28E1A62012EDCFDB | Download from Provider | Download DUON-Portal |
| 193 | PSOsc-b_paper_v3_FOGRA54.icc | A678763D7352A420B2C869D0BAEA9504 | Download from Provider | Download DUON-Portal |
| 194 | PSOuncoated_v3_FOGRA52.icc | 0E23EBEB7F0D1D2A05E189A58BAB3720 | Download from Provider | Download DUON-Portal |
| 195 | PSO_Coated_NPscreen_ISO12647_eci.icc | 32428F7E3612A76F4428F54306449131 | Download from Provider | Download DUON-Portal |
| 196 | PSO_Uncoated_NPscreen_ISO12647_eci.icc | DB4E323398CBF65B3DBE8E218B341544 | Download from Provider | Download DUON-Portal |
| 197 | WAN-IFRAnewspaper26v5.icc | 32359B033C207FDDA891709EA3B9CCC8 | Download from Provider | Download DUON-Portal |
| 198 | zurückgezogen | zurückgezogen | ||
| 199 | ISOcoated_v2_300_eci.icc | 35DB7968BF0904E9317CA9780D871BC3 | Download from Provider | Download DUON-Portal |
| 200 | zurückgezogen | zurückgezogen | ||
| 201 | PSR_LWC_PLUS_V2_M1.icc | 8585DE71EAF73B126562426FC72D9132 | Download from Provider | Download DUON-Portal |
| 202 | zurückgezogen | zurückgezogen | ||
| 203 | PSR_LWC_STD_V2_M1.icc | B7EB673B01D0DD94F9CDA14AC5945FE2 | Download from Provider | Download DUON-Portal |
| 204 | PSR_MF_V2_M1.icc | C7E2AA3C61C1BDEE6028CA9E015331A2 | Download from Provider | Download DUON-Portal |
| 205 | PSR_SC_PLUS_V2_M1.icc | DA64BAD411C7058051CDDFA727DA8359 | Download from Provider | Download DUON-Portal |
| 206 | PSR_SC_STD_V2_M1.icc | 130884A23124DBD60E9104862D5B3E12 | Download from Provider | Download DUON-Portal |
| 207 | PSR_LWC_PLUS_V2_M1_v2.icc | 8A0CABDFFEFCE6F487EAB7C4F8F859FF | Download from Provider | Download DUON-Portal |
